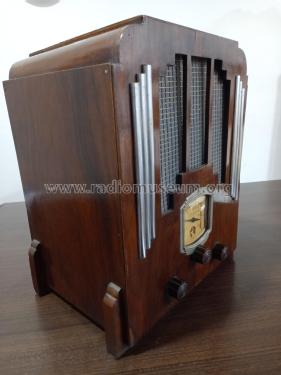

Plinius U 353 de luxe
UCOA; Buenos Aires
- Country
- Argentina
- Manufacturer / Brand
- UCOA; Buenos Aires
- Year
- 1934 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 332548
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast and Short Wave (SW).
- Power type and voltage
- AC/DC-set / 210-230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 6 inch = 15.2 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Plinius U 353 de luxe - UCOA; Buenos Aires
- Shape
- Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.
- Dimensions (WHD)
- 340 x 390 x 230 mm / 13.4 x 15.4 x 9.1 inch
- Notes
-
Radio según la inscripción de su dial que dice Plinius U 353, Model de Luxe, origen nacional RA.
OC: 5.7 - 15 MHz
- Author
- Model page created by Renato Nestor Fernandez. See "Data change" for further contributors.
