AM/FM Stereo Radio Cassette Player Tramp-1

Uher Werke; München

Data
Forum
Pictures
Collections

  • Year
  • 1985 ??
  • Category
  • Sound/Video Recorder and/or Player
  • Radiomuseum.org ID
  • 342810

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Details
  • Cassette-Recorder or -Player; Radio with other functions
  • Power type and voltage
  • Batteries / addl. power jack / AA: 2 x 1.5 / DC 3 Volt
  • Loudspeaker
  • - For headphones or amp.
  • Power out
  • 0.02 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: AM/FM Stereo Radio Cassette Player Tramp-1 - Uher Werke; München
  • Shape
  • Very small Portable or Pocket-Set (Handheld) < 8 inch.
  • Dimensions (WHD)
  • 140 x 90 x 40 mm / 5.5 x 3.5 x 1.6 inch
  • Notes

  • Buchse Phones 3,5 mm Klinke, Anschlusskabel ist gleichzeitig FM-Antenne

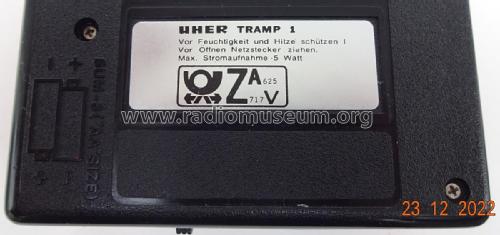

    Buchse DC-3V

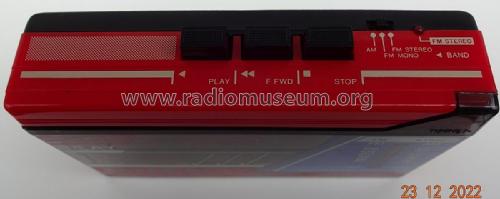

    Schalter Tape-Radio
    Band Schalter AM-FM-FM Stereo
    AM/FM Stereo Super Sensitive Tuner
    Radio Zeigerabstimmung

    Wellenbereiche: FM 88-108 MHz, AM 540-1600 kHz

  • Net weight (2.2 lb = 1 kg)
  • 0.250 kg / 0 lb 8.8 oz (0.551 lb)
  • Author
  • Model page created by Gerhard Härtl. See "Data change" for further contributors.
