CG320

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1974–1977

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 29465

• Picture

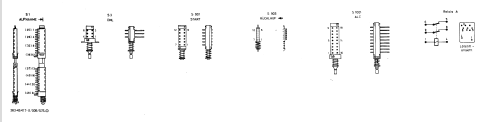

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 39

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• 2 Loudspeakers

• from Radiomuseum.org
• Model: CG320 - Uher Werke; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 400 x 115 x 267 mm / 15.7 x 4.5 x 10.5 inch

• Notes
• ICs: 2.
  Stereo-NF-Verstärker mit 2 Endstufen je 5 W (Sinus); Übertragungsbereich: 35-15000 Hz mit Chromdioxidband; abschaltbare DNL-Rauschunterdrückung; 12-V-Batteriebetrieb über Autoanschlusskabel K719.

• Net weight (2.2 lb = 1 kg)
• 6.2 kg / 13 lb 10.5 oz (13.656 lb)

• External source of data
• Erb

• Source of data
• Katalog RFP 1974 / Radiokatalog Band 2, Ernst Erb
