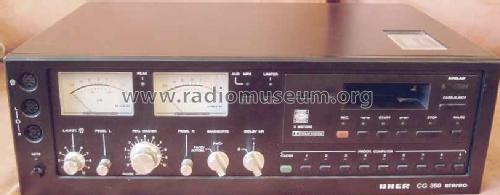

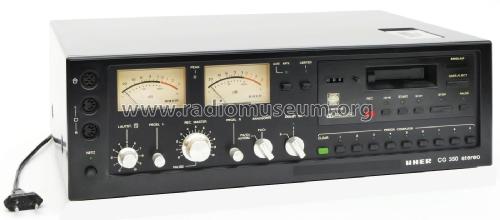

CG350
Uher Werke; München
- Country
- Germany
- Manufacturer / Brand
- Uher Werke; München
- Year
- 1979
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 141586
Original prospekt in 1979.
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org
- Model: CG350 - Uher Werke; München
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 435 x 135 x 290 mm / 17.1 x 5.3 x 11.4 inch
- Notes
- HiFI-Cassettendeck mit 3 Motoren Laufwerk. Frequenzgang (FeCr): 30-18000Hz, vollektronische Tipptastensteuerung, Bandlaufanzeige, Dolby NR-Schaltung, Limiter, Masterpegeleinsteller, Bandsortenwahlschalter, elektronische Bandendabschaltung. DIN-und Cinch-Anschlüsse, Kopfhörerendstufe, Abhörlautstärke einstellbar.
- Source of data
- -- Original prospect or advert
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
