CG362
Uher Werke; München
- Country
- Germany
- Manufacturer / Brand
- Uher Werke; München
- Year
- 1980 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 192674
Q: Ebay, 05,.2011 - soka680edx

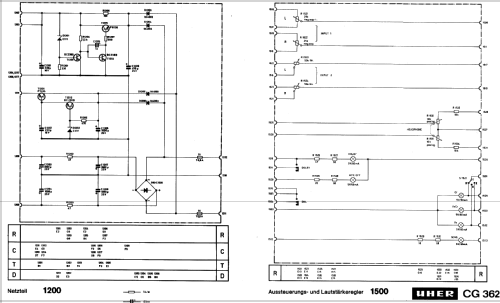

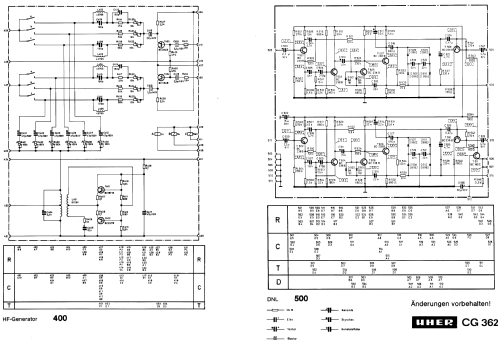

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Alternating Current supply (AC) / 110; 220 Volt
- Loudspeaker
- - For headphones or amp.
- from Radiomuseum.org
- Model: CG362 - Uher Werke; München
- Shape
- Book-shelf unit.
- Notes
- 4 Spur Stereo (nach DIN 45 516)
CrO2 20 Hz - 18 kHz, FeO3 20 Hz - 14 kHz, FeCr 20 Hz - 18 kHz.
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Pius Steiner. See "Data change" for further contributors.
