HiFi-Special 24

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1965–1968

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 26315

• Picture

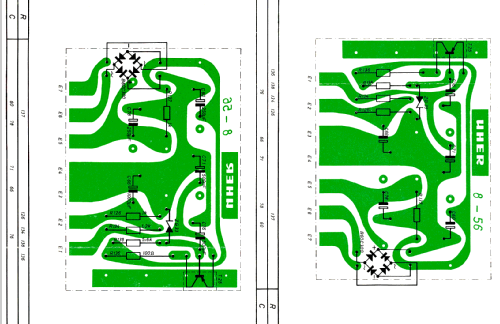

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 25

• Semiconductors
• AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC151 AC153 AC153 AC153 AC153 AC153 AC153 AC153

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder; Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: HiFi-Special 24 - Uher Werke; München

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 390 x 175 x 335 mm / 15.4 x 6.9 x 13.2 inch

• Notes
• Uher 24 Special.
  Vierspur-Stereo; 3 Köpfe; Bandgeschwindigkeiten: 9,5/19 cm/s; Spulen-Ø 18 cm; Frequenzbereich: 20···20000 Hz bei 19 cm/s, 20···15000 Hz bei 9,5 cm/s.
  Technische Daten und Ausführung wie 22 HiFi-Special, jedoch Vierspurgerät.

• Net weight (2.2 lb = 1 kg)
• 11 kg / 24 lb 3.7 oz (24.229 lb)

• External source of data
• erb

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• Handbuch VDRG 1965/1966 (bis 1968/68)
