• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1970 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 192632

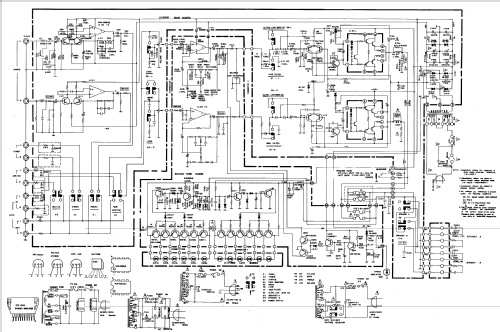

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 28

• Semiconductors

• Main principle
• Audio-Amplification; none

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 42 W (unknown quality)

• from Radiomuseum.org
• Model: Integrated Stereo Amplifier VG832 - Uher Werke; München

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 440 x 55 x 300 mm / 17.3 x 2.2 x 11.8 inch

• Notes
• 32W at 8 Ohm, 42W at 4 Ohm
  Distortion: at 32W into 8 Ohm 0.08%
  Phono preamp

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Pius Steiner. See "Data change" for further contributors.
