M516
Uher Werke; München
- Country
- Germany
- Manufacturer / Brand
- Uher Werke; München
- Year
- 1969/1970
- Category
- Microphone or Pick-up element
- Radiomuseum.org ID
- 103440
Q: Uher, Service-Unterlagen
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- - For headphones or amp.
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: M516 - Uher Werke; München
- Dimensions (WHD)
- 45 x 160 x 45 mm / 1.8 x 6.3 x 1.8 inch
- Notes
-

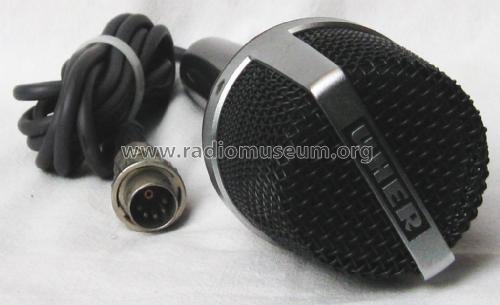

Dynamisches Mikrofon M 516; Nierencharakteristik; Übertragungsbereich 10···14000 Hz.
Verwendung als Reportermikrofon mit Start/Stop-Schalter für Tonbandgerät 4000 Report L u.ä. Mit festem Anschlußkabel und 5-pol. DIN-Stecker.capsula microfonica 500 Ω
- Net weight (2.2 lb = 1 kg)
- 0.3 kg / 0 lb 10.6 oz (0.661 lb)
- Price in first year of sale
- 77.00 DM
- Mentioned in
- Handbuch VDRG 1969/1970 (und 1970/71)
- Author
- Model page created by Alexander Küffer. See "Data change" for further contributors.
