Report Pilot 1000 Kenn Nr. 1111_31 Transistoren

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1966

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 112947

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 31

• Semiconductors
• AC127 AC151VI AC151VI AC151VI AC153 AC176 AC176 AC176 AC176 AC176 AC176 AC187 AC188 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BC109 BFY39 BFY39 AC153 AC153

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Line / Batteries (any type) / 110-250 / 6 - 7,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 0.5 W (max.)

• Material
• Metal case

• from Radiomuseum.org

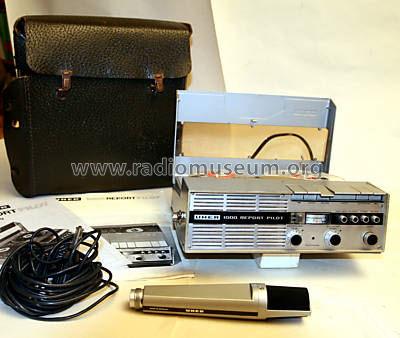

• Model: Report Pilot 1000 [Kenn Nr. 1111_31 Transistoren] - Uher Werke; München

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 280 x 90 x 220 mm / 11 x 3.5 x 8.7 inch

• Notes

• Professionelles Vollspur-Magnetbandgerät für bildsynchrone Tonaufzeichnung mittels Pilotfrequenzverfahren.

  Bandgeschwindigkeit: 19,05 cm/s / Spulen-ø 13 cm / Entzerrungscharakteristik wahlweise entsprechend CCIR-oder NARTB-Norm umschaltbar / Pilotfrequenzaufzeichnung und -wiedergabe über eigenen Magnetkopf / Hinterbandkontrolle / Trittschallfilter / automatische Aussteuerung abschaltbar / lageunabhängiger Betrieb.

• Net weight (2.2 lb = 1 kg)
• 3.2 kg / 7 lb 0.8 oz (7.048 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• Funkschau (1966 Heft 21 Seite 1727/669ff Detailbeschreibung)
