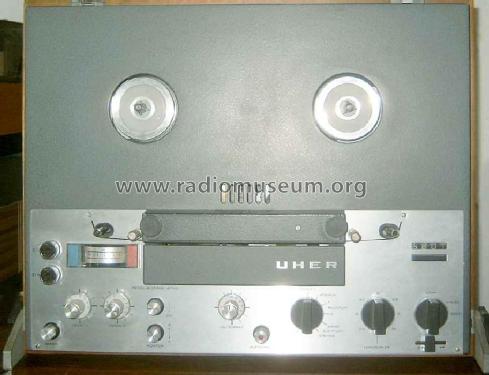

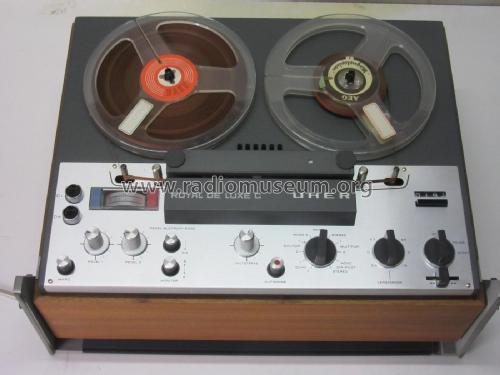

Royal de Luxe C ohne Lautsprecher

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1970–1972

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28297

• Picture

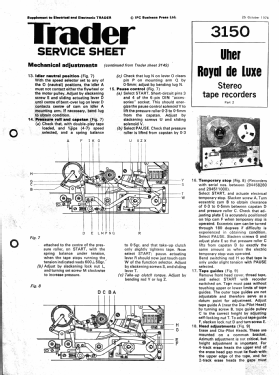

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 30

• Semiconductors

• Main principle
• Audio-Amplification

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-250 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Wooden case

• from Radiomuseum.org
• Model: Royal de Luxe C [ohne Lautsprecher] - Uher Werke; München

• Dimensions (WHD)
• 465 x 340 x 195 mm / 18.3 x 13.4 x 7.7 inch

• Notes
• 30 Transistoren, 7 Dioden.
  Ohne Leistungsendstufen, Kopfhörerausgang.

• Net weight (2.2 lb = 1 kg)
• 12.3 kg / 27 lb 1.5 oz (27.093 lb)

• Price in first year of sale
• 1,060.00 DM

• External source of data
• Erb

• Source of data
• Handbuch VDRG 1970/1971 / Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.
