• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1962

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 165861

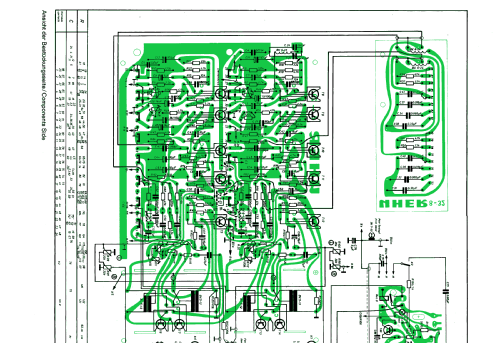

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 19

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110; 130; 150; 220; 240; 250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 4 W (unknown quality)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Royal Stereo 784S - Uher Werke; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 375 x 350 x 175 mm / 14.8 x 13.8 x 6.9 inch

• Notes
• Vierspur Stereo, 3 Tonköpfe, 4 Bandgeschwindigkeiten: 2,4/4,75/9,5/19 cm/s. Spulendurchmesser bis 18cm. Synchroplay, Hall, Echotrick, Diapilot, Mischpult mit 2 getrennten Eingängen. Frequenzbereich: 50-20000Hz bei 19cm/s.

• Net weight (2.2 lb = 1 kg)
• 10.6 kg / 23 lb 5.6 oz (23.348 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Peter Samland. See "Data change" for further contributors.
