724 Stereo Modell 1971
Uher Werke; München
- Country
- Germany
- Manufacturer / Brand
- Uher Werke; München
- Year
- 1971–1974
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 28561

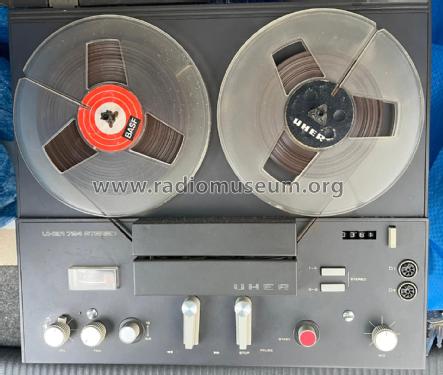

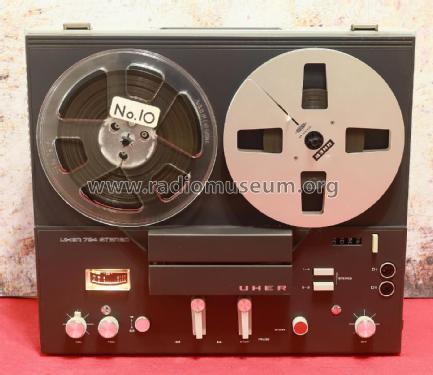

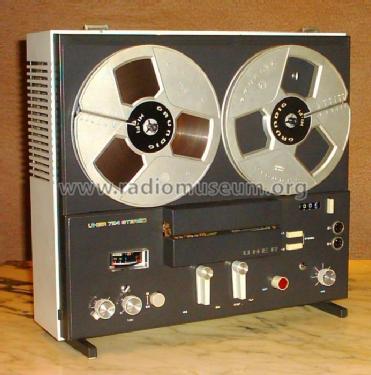

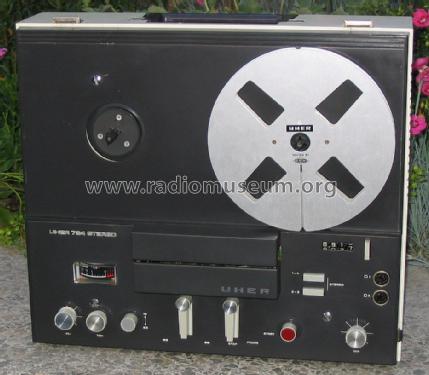

Frontansicht
Gerät eines Sammler-Kollegen / Eigenes Foto
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 15
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Tape Recorder
- Power type and voltage
- Alternating Current supply (AC) / 110-130; 220-240 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 724 Stereo [Modell 1971] - Uher Werke; München
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 398 x 170 x 349 mm / 15.7 x 6.7 x 13.7 inch
- Notes
- HiFi-Vierspur-Stereo. Bandgeschwindigkeiten: 9,5/19 cm/s; Spulen-Ø: 18 cm; Überragungsbereich bei 19 cm/s: 40-20000 Hz. Stereo-NF-Verstärker mit 2 Endstufen je 4 W. Betrieb in horizontaler und vertikaler Lage möglich.
Es gibt bereits ein früheres Modell gleichen Namens von 1964 !
- Net weight (2.2 lb = 1 kg)
- 8.9 kg / 19 lb 9.7 oz (19.604 lb)
- Price in first year of sale
- 548.00 DM
- External source of data
- Erb
- Source of data
- Handbuch VDRG 1971/1972 / Radiokatalog Band 2, Ernst Erb
