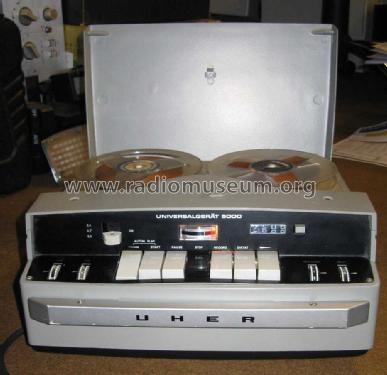

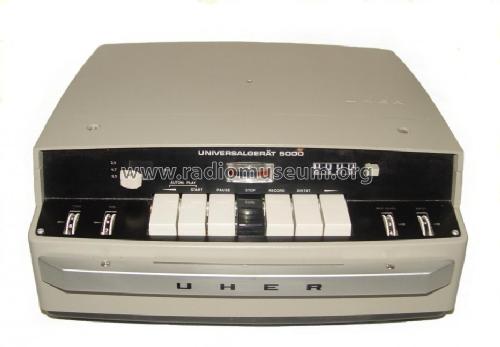

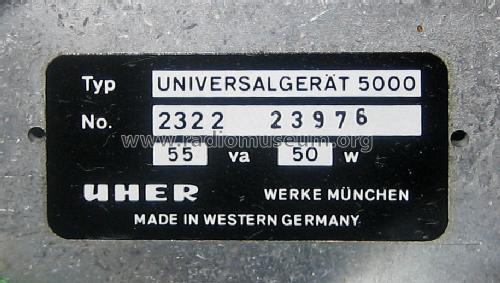

Universalgerät 5000 ab Nr.: 232201001

• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1972–1975

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 28890

• Picture

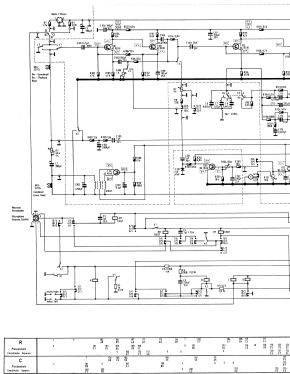

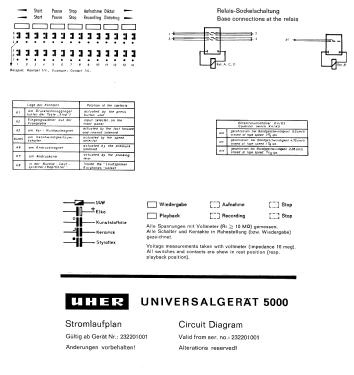

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 13

• Semiconductors
• AC151 AC151 AC151 AC151 AC151 BC153 BC153 BC384 BC214 BC384 BC214 BD461 BD462 BA181 BA181 BA181 1N4148 Si-Br-Gl B30C600

• Main principle
• Audio-Amplification

• Details
• Tape Recorder; Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 6 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Universalgerät 5000 [ab Nr.: 232201001] - Uher Werke; München

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 335 x 150 x 322 mm / 13.2 x 5.9 x 12.7 inch

• Notes

• Drei Bandgeschwindigkeiten wählbar (2,9 / 4,7 / 9,5 cm/sek.). Vier Dioden verbaut.

  Für die drei Varianten vom Uher Universal und Universalgerät 5000 siehe hier.

• Net weight (2.2 lb = 1 kg)
• 8.5 kg / 18 lb 11.6 oz (18.722 lb)

• Price in first year of sale
• 736.00 DM
