• Country
• Germany

• Manufacturer / Brand
• Uher Werke; München

• Year
• 1969–1971

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 27852

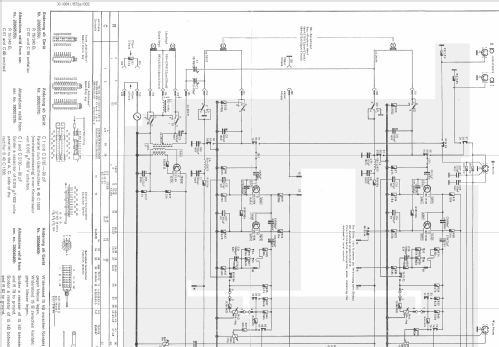

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 20

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 110-130; 200-240 Volt

• Loudspeaker
• 2 Loudspeakers

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Variocord Stereo 263 [2-Spur] - Uher Werke; München

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 435 x 175 x 332 mm / 17.1 x 6.9 x 13.1 inch

• Notes
• Zweispur-Stereo; Bandgeschwindigkeiten: 4,75/9,5/19 cm/s; Spulen-Ø: 18 cm; Übertragungsbereich bei 19 cm/s: 30···20000 Hz. Stereo-NF-Verstärker mit 2 Endstufen je 6 W; auswechselbarer Kopfträger (Vierspur: 95,- DM); Aussteuerungsautomatik nachrüstbar (48,- DM).

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 632.00 DM

• External source of data
• erb

• Source of data
• Handbuch VDRG 1969/1970 / Radiokatalog Band 2, Ernst Erb
