Ekco Canewdon REF

Ultimate-Ekco (N.Z.) Co. Ltd.; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1960
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 351094

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 5
  • Main principle
  • Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
  • Tuned circuits
  • 6 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical / Ø 5 inch = 12.7 cm
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Ekco Canewdon REF - Ultimate-Ekco N.Z. Co. Ltd.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 17.75 x 11 x 7.5 inch / 451 x 279 x 191 mm
  • Notes

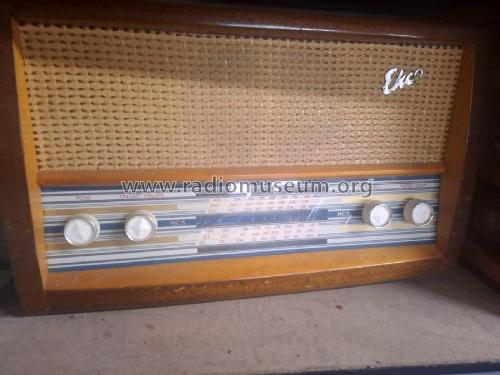

  • EKCO "CANEWDON"

    This latest addition to the Ekco range is a Powerful 5-valve broadcast receiver in a highly polished, rich, mahogany veneer cabinet with contrasting honey shade, speaker, and dial surround. This surround has a slightly convex curvature adding a smooth, sweeping line to a most attractive model.

    Selected grill cloth blends harmoniously with the large, colourful dial and handsome, gold-rimmed knobs, centrally located for ease of control. Station and control markings are boldly distinctive and in addition are floodlit to facilitate selection. A radiogram switch is also incorporated with provision for the connection of a gram unit to the rear of the chassis if so desired.

    Reproduction from the latest Rolla 5-7 speaker covers a full tonal range and adds greatly to the overall quality of this most impressive mantel receiver. Cabinet Dimensions 17¾" wide, 11" high, 7½" deep.

    Manufactured by ULTIMATE-EKCO (NZ) Co. LTD. Quay Street Auckland.

    See also Ultimate Lynton REF.

  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
