• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1936 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345312

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 58 2A7 58 2B7 2A5 80

• Main principle
• Superhet with RF-stage; ZF/IF 250 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

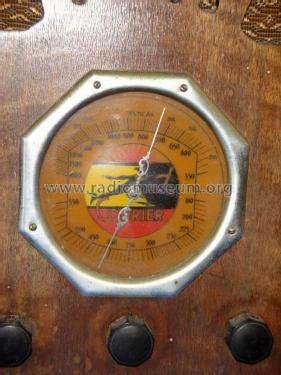

• Model: Courier ACC - Ultimate Brand, Radio Ltd. &

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 380 x 480 x 250 mm / 15 x 18.9 x 9.8 inch

• Notes

• 6-Valve superhet with RF stage broadcast (MW) tombstone model receiver.

  Manufactured by Radio (1936) Ltd.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
