• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1948

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 359752

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 6K7G 7A8 6K7G 6Q7G 6V6GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org
• Model: Courier Cygnet RAG - Ultimate Brand, Radio Ltd. &

• Shape
• Tablemodel, low profile (big size).

• Notes

• Courier RAG

  6-Valve superhet with RF stage broadcast (MW) table receiver.

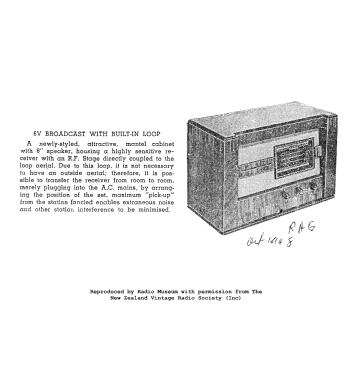

  Includes a loop aerial so the set can be easily placed in any part of the home.

  Original valve line up listed. See schematic notes for future changes.

  See also Skyscraper RAG, Golden Knight RAG & Ultimate RAG.

  Manufactured by Radio (1936) Ltd.
