• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337159

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• 6K7 6K8 6K7 6H6 6U5 6F5 6F6 80

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm

• Material
• Wooden case

• from Radiomuseum.org

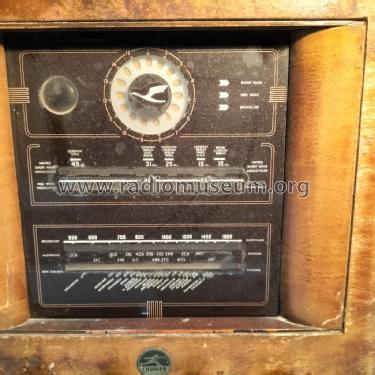

• Model: Courier ED [Table Cabinet] - Ultimate Brand, Radio Ltd. &

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 585 x 400 x 280 mm / 23 x 15.7 x 11 inch

• Notes

• 8 valve (including magic eye) superhet with RF stage.

  Also available as console model.

  Same chassis used in Ultimate ED model

• Price in first year of sale
• 36.00 NZ Pounds

• Mentioned in
• -- Original prospect or advert (Nelson Evening Mail 15 June 1940 Page 10)

• Literature/Schematics (1)
• -- Original prospect or advert (Nelson Evening Mail 18 May 1940 Page 5)

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.

• Other Models

• Here you find 151 models, 127 with images and 132 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland
