• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1941

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 356132

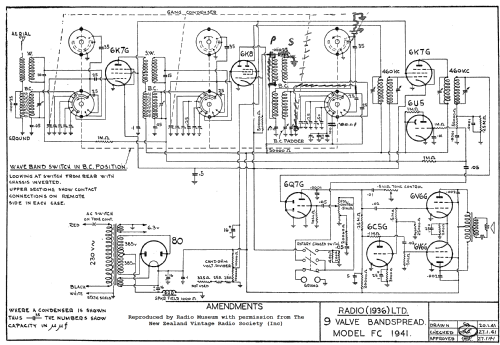

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6K7G 6K8 6K7G 6Q7G 6U5 6C5G 6V6G 6V6G 80

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 230 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• from Radiomuseum.org
• Model: Courier FC [Mantel] - Ultimate Brand, Radio Ltd. &

• Notes

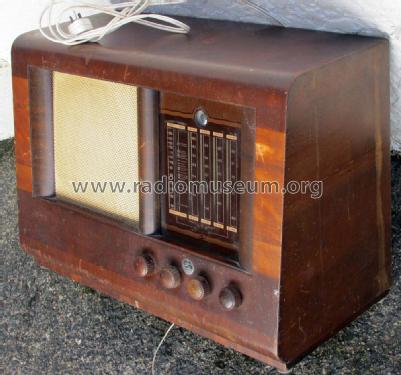

• Courier FC Mantel

  9-valve 5-band superhet with RF stage mantel receiver.

  See also Ultimate FC Console, and Skyscraper FC Console models using the same chassis.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
