Skyscraper RB
Skyscraper (Brand) Bond & Bond Ltd.;Auckland
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Skyscraper (Brand) Bond & Bond Ltd.;Auckland
- Year
- 1945
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339389

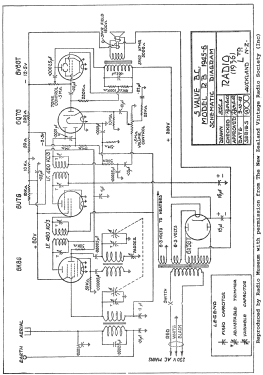

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6.5 inch = 16.5 cm
- Material
- Metal case
- from Radiomuseum.org
- Model: Skyscraper RB - Skyscraper Brand Bond & Bond
- Shape
- Tablemodel, with any shape - general.
- Notes
-
5-Valve superhet broadcast (MW) steel cabinet mantel model receiver.
Pressed steel cabinet in white with pinex backing. Also available in traditional wooden cabinet.
Manufactured by Radio (1936) Ltd for Bond & Bond Ltd.
See also Golden Knight RB, Ultimate RB, Courier RB, Rolls RB, Lewis Eady RB & Madison RB.
- Price in first year of sale
- 24.00 NZ £
- Mentioned in
- More Golden Age of Radio (Page 133 (Rolls FA))
- Literature/Schematics (1)
- -- Original prospect or advert (Bay Of Plenty Times 18 May 1946 Page 5)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
