- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland
- Year
- 1939
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 335088

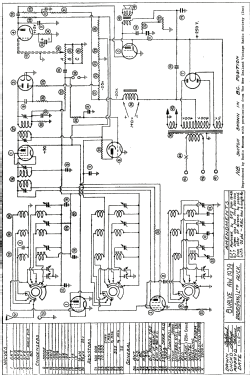

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 8
- Main principle
- Superhet with RF-stage; ZF/IF 460 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 8 inch = 20.3 cm
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultimate CNU - Ultimate Brand, Radio Ltd. &
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 555 x 460 x 325 mm / 21.9 x 18.1 x 12.8 inch
- Notes
-
8-valve, All Wave superhet with RF stage & magic eye tuning indicator.
- Mentioned in
- -- Original prospect or advert (Nelson Evening Mail 24 August 1939 Page 13)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
