Ultimate RCI

Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1953 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 356047

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; 3 AF stage(s)
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast and Short Wave (SW).
  • Power type and voltage
  • Alternating Current supply (AC) / 50Hz, 230 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Ultimate RCI - Ultimate Brand, Radio Ltd. &
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 530 x 360 x 210 mm / 20.9 x 14.2 x 8.3 inch
  • Notes

  • Ultimate RCI

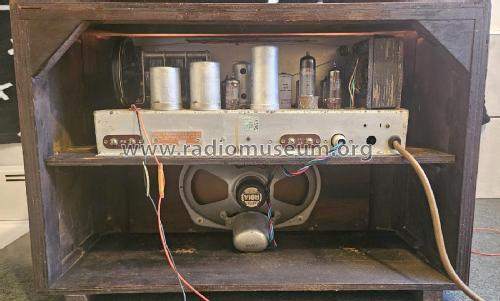

    7-valve dual wave superhet with RF stage mantel receiver with Rola 6 X 9H elliptical speaker.

  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
