• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate (Brand), Radio Ltd. & Radio (1936) Ltd.; Auckland

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 339447

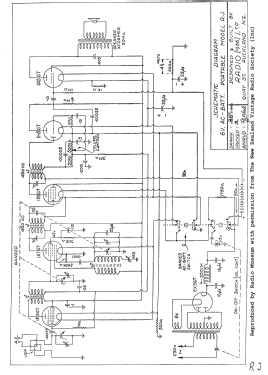

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes

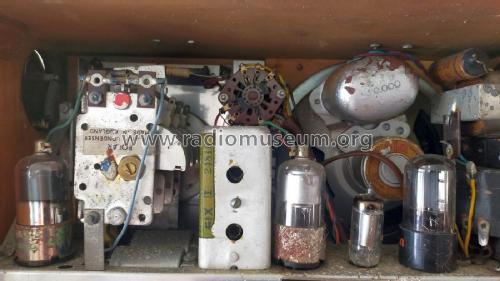

• 1P5GT 1A7GT 1P5GT 1H5GT 1A5GT 6X5GT

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage

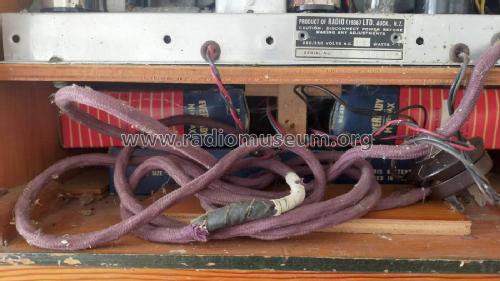

• Line / Batteries (any type) / 230 or 90 & 1.5 Volt

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org

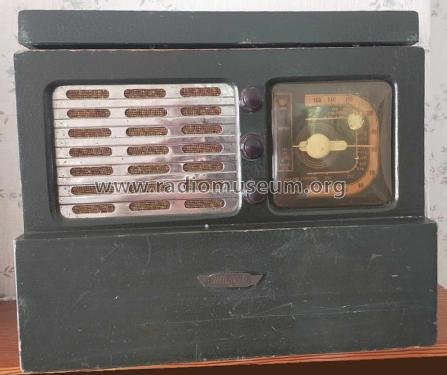

• Model: Ultimate RJ Portable - Ultimate Brand, Radio Ltd. &

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 370 x 310 x 200 mm / 14.6 x 12.2 x 7.9 inch

• Notes

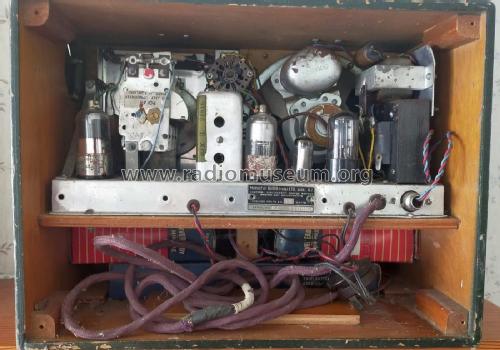

• 6-Valve superhet with RF stage portable broadcast (MW) receiver.

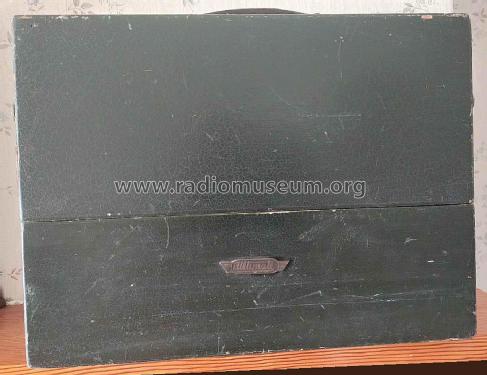

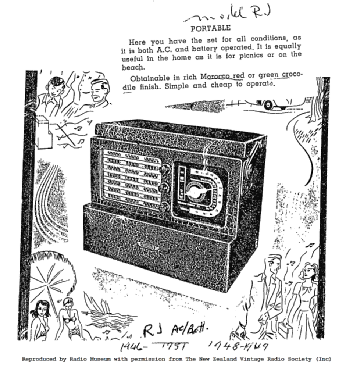

  Available in Morocco Red or Green Crocodile.

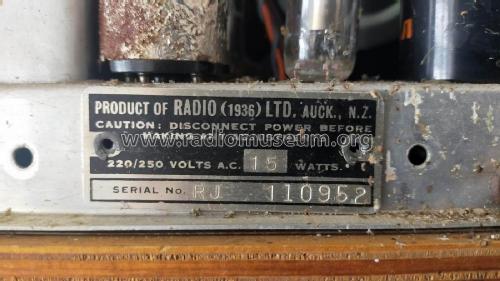

  Manufactured by Radio (1936) Ltd.

  See also Rolls Model RJ.

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
