• Country
• New Zealand-Aotearoa

• Manufacturer / Brand
• Ultimate-Ekco (N.Z.) Co. Ltd.; Auckland

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 345465

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 11

• Valves / Tubes
• EF41 ECH42 ECC40 EAF42 DM70 ECC40 EF86 EL41 EL41 EL41 5Z4G

• Main principle
• Superhet with RF-stage; ZF/IF 460 kHz; 4 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 230 Volt

• Loudspeaker
• 3 Loudspeakers

• Power out
• 9 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Ultimate De Luxe Concert Grand Mk II RDC - Ultimate-Ekco N.Z. Co. Ltd.;

• Shape
• Console with any shape - in general

• Dimensions (WHD)
• 1050 x 900 x 450 mm / 41.3 x 35.4 x 17.7 inch

• Notes

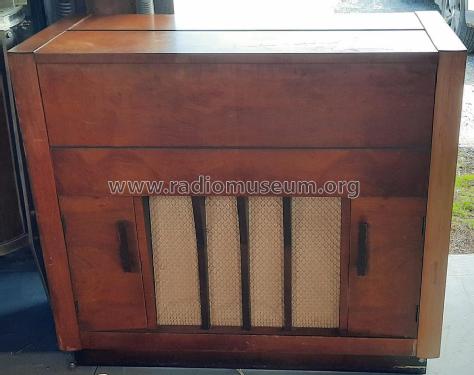

• 11-Valve (including magic eye) superhet with RF stage de luxe console radiogram.

  Broadcast (MW) plus 8 bandspread SW bands.

  Two Rola 5X and one Rola 12U cross over network speakers.

  Garrard RC98H automatic record changer (replaced by later unit in this example).

  See also Ultimate Concert Grand Mk1.

• Price in first year of sale
• 225.00 NZ £

• Author
• Model page created by Brian Stevens. See "Data change" for further contributors.
