Ultimate Stuart RCL
Ultimate-Ekco (N.Z.) Co. Ltd.; Auckland
- Country
- New Zealand-Aotearoa
- Manufacturer / Brand
- Ultimate-Ekco (N.Z.) Co. Ltd.; Auckland
- Year
- 1956
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 339024
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common); ZF/IF 460 kHz; 2 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Alternating Current supply (AC) / 230 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org
- Model: Ultimate Stuart RCL - Ultimate-Ekco N.Z. Co. Ltd.;
- Shape
- Tablemodel, low profile (big size).
- Notes
-

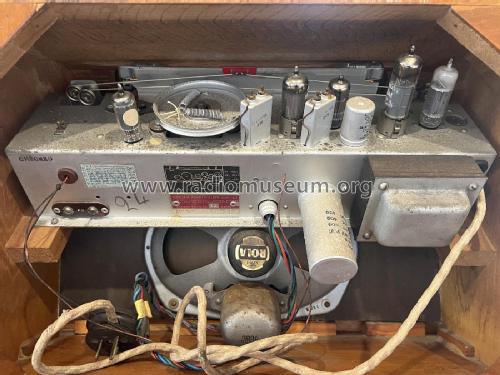

5-Valve superhet broadcast (MW) table radio.
Rola 6" x 9" 6-9H permanent magnet speaker.
Light or medium oak cabinet.
- Price in first year of sale
- 27.95 NZ £
- Mentioned in
- The Golden Age of Radio in the Home 1986 (Page 74)
- Literature/Schematics (1)
- -- Original prospect or advert (Press 16 June 1956 Page 15)
- Author
- Model page created by Brian Stevens. See "Data change" for further contributors.
