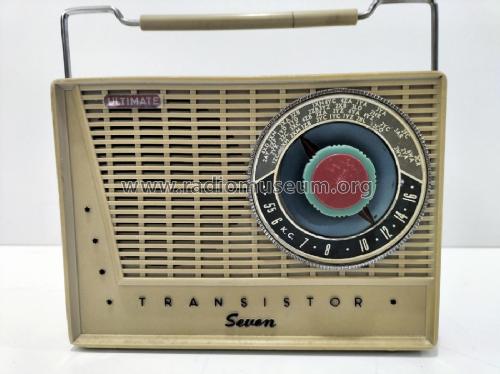

Voyager Transistor Seven RDE

Ultimate-Ekco (N.Z.) Co. Ltd.; Auckland

Data
Forum
Pictures
Collections

  • Year
  • 1957
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 335746

 Technical Specifications

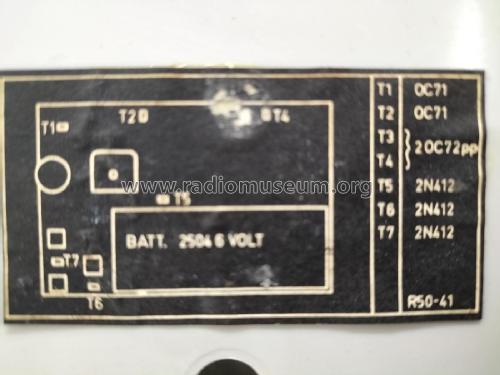

  • Number of Transistors
  • 7
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz; 3 AF stage(s)
  • Tuned circuits
  • 8 AM circuit(s)
  • Wave bands
  • Broadcast only (MW).
  • Power type and voltage
  • Dry Batteries / 6 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
  • Power out
  • 0.25 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Voyager Transistor Seven RDE - Ultimate-Ekco N.Z. Co. Ltd.;
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Dimensions (WHD)
  • 210 x 150 x 80 mm / 8.3 x 5.9 x 3.1 inch
  • Notes

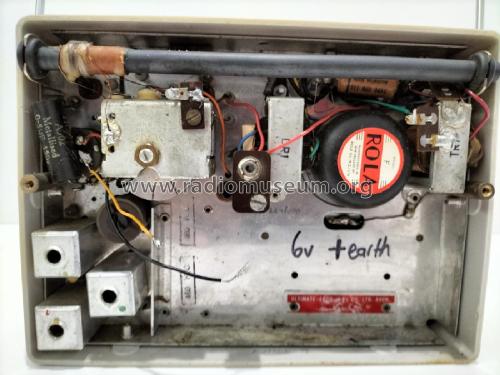

  • Same chassis as Ultimate Ecko Venturer Transistor Seven.

    Battery Eveready 2504, 6V.

    Rola 4F speaker.

  • Author
  • Model page created by Brian Stevens. See "Data change" for further contributors.
