22 Radiogram

• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ultra Electric Ltd.; London

• Year
• 1934

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 192532

• • alternative name: Ultra Radio and Television

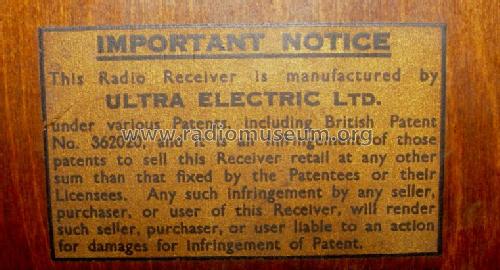

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AC/TP AC/VP1 AC2/PenDD UU60/250

• Main principle
• Superheterodyne (common); ZF/IF 465 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 200-220; 230-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 22 [Radiogram] - Ultra Electric Ltd.; London

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 590 x 850 x 360 mm / 23.2 x 33.5 x 14.2 inch

• Notes
• 78 RPM record player.

• Source of data
• - - Data from my own collection

• Literature/Schematics (1)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (19)

• Literature/Schematics (2)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (531)

• Author
• Model page created by Wilfried Winter. See "Data change" for further contributors.
