- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ultra Electric Ltd.; London
- Year
- 1936
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 200856
-
- alternative name: Ultra Radio and Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superhet with RF-stage; ZF/IF 456 kHz
- Wave bands
- Broadcast, Long Wave and 2 x Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-250 Volt
- Loudspeaker
- Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 47 - Ultra Electric Ltd.; London
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Notes
- A 110-130 v AC mains version was available to order.
- Price in first year of sale
- 17.85 GBP
- Literature/Schematics (1)

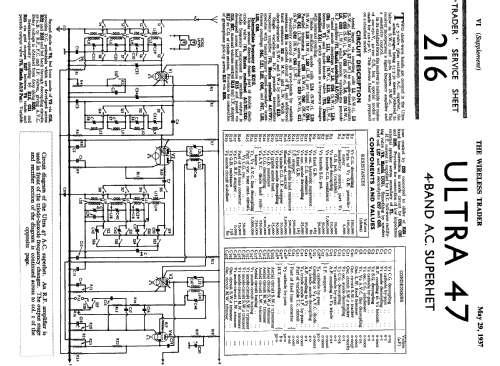

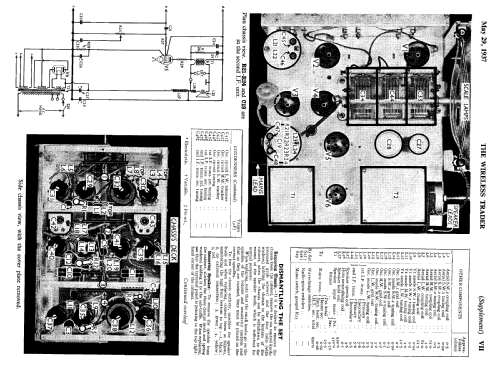

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (216 dated May 29 1937)
- Literature/Schematics (2)

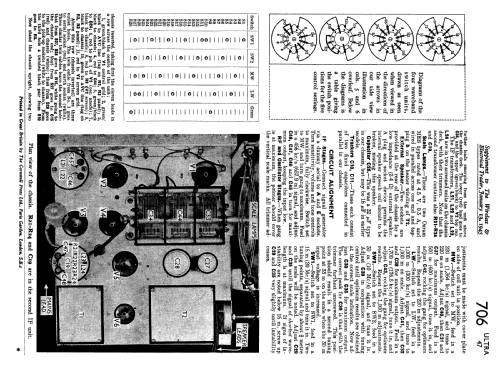

- Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (706 dated January 13 1945)
- Author
- Model page created by Howard Craven. See "Data change" for further contributors.
