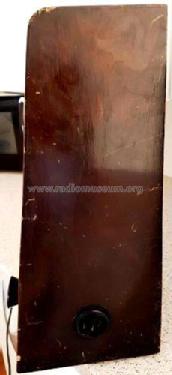

Minstrel T611
Ultra Electric Ltd.; London
- Country
- Great Britain (UK)
- Manufacturer / Brand
- Ultra Electric Ltd.; London
- Year
- 1949
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 101922
-
- alternative name: Ultra Radio and Television
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 470 kHz; 1 AF stage(s)
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast, Long Wave and Short Wave.
- Power type and voltage
- Alternating Current supply (AC) / 200-260 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- from Radiomuseum.org
- Model: Minstrel T611 - Ultra Electric Ltd.; London
- Shape
- Tablemodel, with any shape - general.
- Price in first year of sale
- 18.00 GBP
- Circuit diagram reference
- Radio and TV Servicing books (R&TVS) book
- Mentioned in
- -- Original-techn. papers.
- Literature/Schematics (1)
- Trader Sheet 953.
- Author
- Model page created by Peter Hoddow. See "Data change" for further contributors.
