• Country
• Great Britain (UK)

• Manufacturer / Brand
• Ultra Electric Ltd.; London

• Year
• 1933

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78020

• • alternative name: Ultra Radio and Television

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AC/SG AC/S1VM AC/SG AC/Pen

• Main principle
• Superheterodyne (common); ZF/IF 456 kHz

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil)

• Material
• Wooden case

• from Radiomuseum.org

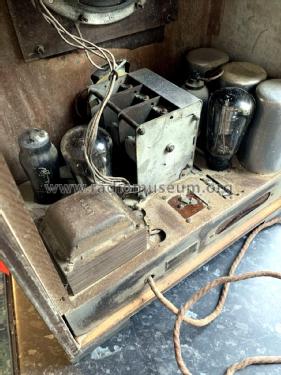

• Model: Tiger [AC] - Ultra Electric Ltd.; London

• Shape
• Tablemodel, Tombstone = decorative upright, not cathedral but can have rounded edges.

• Dimensions (WHD)
• 16 x 20.25 x 9.25 inch / 406 x 514 x 235 mm

• Notes
• Metal rectifier.

• Source of data
• Radio! Radio!

• Literature/Schematics (1)
• Trader sheet 528

• Literature/Schematics (2)
• Trader Service Sheet (suppl. of Wireless & El. Trader, etc.) (3)

• Author
• Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.
