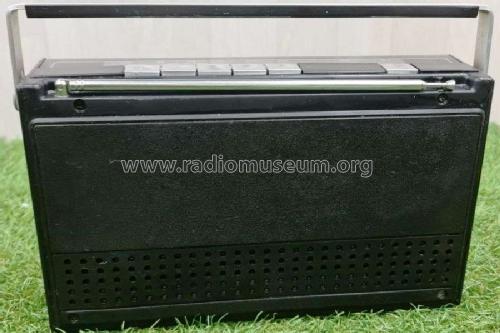

Transistor Portable Radio 6194

Ultra Electric Ltd.; London

Data
Forum
Pictures
Collections

  • Year
  • 1979 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 334592
    • alternative name: Ultra Radio and Television

 Technical Specifications

  • Number of Transistors
  • 10
  • Main principle
  • Superheterodyne (common); ZF/IF 470/10700 kHz
  • Wave bands
  • Broadcast, Long Wave, Short Wave plus FM or UHF.
  • Power type and voltage
  • Line / Batteries (any type) / 50Hz: 240 / C: 6 x 1.5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
  • Power out
  • 0.9 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Transistor Portable Radio 6194 - Ultra Electric Ltd.; London
  • Shape
  • Portable set > 8 inch (also usable without mains)
  • Notes

  • A mains/battery 4 band AM/FM portable transistor radio. With telescopic FM antenna, sockets for mains lead and earphone, DIN socket for tape, elliptical loudspeaker 3½ x 2⅜ inch.

    Wavebands
    LW (AM) 150 kHz - 260 kHz
    MW (AM) 530 kHz - 1600 kHz
    VHF (FM) 88 MHz - 108 MHz
    SW (49m Band) 5.95 MHz - 6.25 MHz

    Made in Taiwan

  • Literature/Schematics (1)
  • - - Manufacturers Literature (Thorn Service manual Ultra 6194)
  • Author
  • Model page created by Howard Craven. See "Data change" for further contributors.
