• Country
• Italy

• Manufacturer / Brand
• Ultravox; Milano

• Year
• 1957/1958

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118285

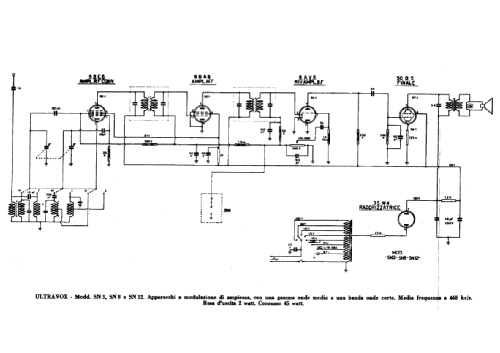

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AV6 35W4 50B5

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 inch = 25.4 cm

• Power out
• 1.5 W (unknown quality)

• Material
• Bakelite or Plastics (type unknown)

• from Radiomuseum.org

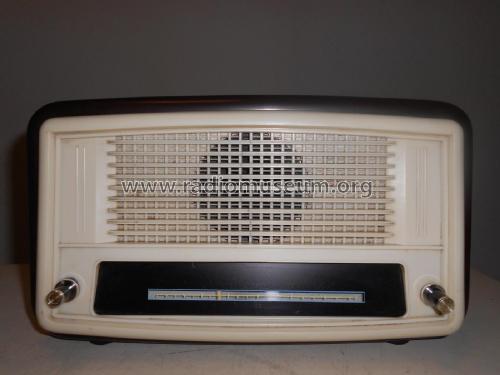

• Model: SN12 - Ultravox; Milano

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 320 x 190 x 150 mm / 12.6 x 7.5 x 5.9 inch

• Notes
• Due varianti di colore (avorio o marrone, frontale bianco). Stesso schema dei modelli SN3 e SN8.

  2 color variants.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Price in first year of sale
• 18,000.00 ITL

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• Catalogo ANIE (1956-57)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
