• Country
• Germany

• Manufacturer / Brand
• Ultron-Elektronik GmbH; München

• Year
• 1960 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 285217

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AK8 12AT7 3KP1F

• Number of Transistors
• 13

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220; 230; 240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Oszilloscope 536A - Ultron-Elektronik GmbH;

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 140 x 210 x 350 mm / 5.5 x 8.3 x 13.8 inch

• Notes

• Ultron Oszilloscope 536ACRT 3KP1F Diameter 75mm, 8 Diodes, Sweep Frequency 10Hz to 100kHz.
  Siehe auch Kikusui Electronics Yokohama Oszilloscope 536A

• Net weight (2.2 lb = 1 kg)
• 6 kg / 13 lb 3.5 oz (13.216 lb)

• Literature/Schematics (4)

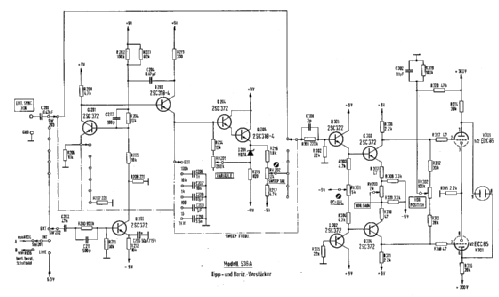

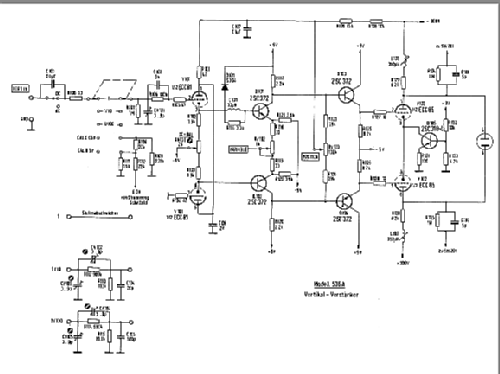

• -- Schematic

Bedienungsanleitung - Ultron 536A

1036 KB

• Documents regarding this model

• Author
• Model page created by Arpad Roth † 27.3.17. See "Data change" for further contributors.
