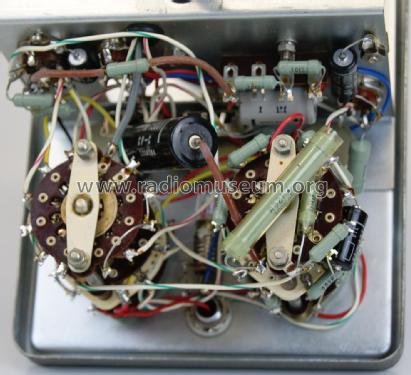

Röhrenvoltmeter LV-75
Ultron-Elektronik GmbH; München
- Country
- Germany
- Manufacturer / Brand
- Ultron-Elektronik GmbH; München
- Year
- 1963 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 276800
- Number of Tubes
- 3
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Röhrenvoltmeter LV-75 - Ultron-Elektronik GmbH;
- Dimensions (WHD)
- 150 x 225 x 105 mm / 5.9 x 8.9 x 4.1 inch
- Notes
-
Siehe auch Leader VT Voltmeter LV-75.
Gerät ähnelt dem Leader VT LV-75 bis auf Versorgungsspannung. Der Leader Schriftzug befindet sich mit dem Ultron-Schriftzug oben links im Messwerk.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Author
- Model page created by Ulrich Fieseler. See "Data change" for further contributors.
