• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1965 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 218419

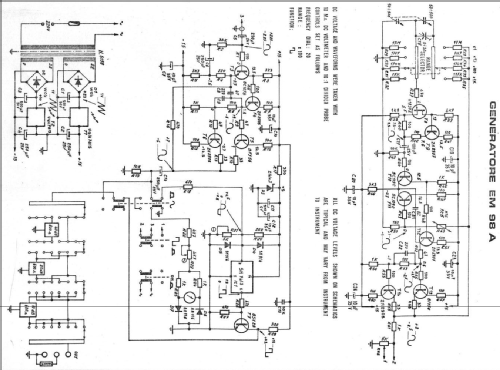

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: AF Oscillator EM98A - Unaohm Start, Ohm, E.

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 290 x 140 x 245 mm / 11.4 x 5.5 x 9.6 inch

• Notes
• Generatore di Bassa frequenza da 20 Hz a 200 kHz in quattro gamme. Onda sinusoidale e quadra. Uscita da 1 mV a 3 V (da -60dB a +10 dB) Imped. 600ohm

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Author
• Model page created by Sandro Checchi. See "Data change" for further contributors.
