• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1948 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 200504

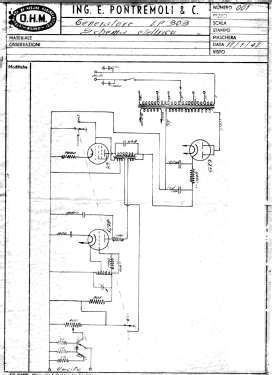

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 955 6R 6X5

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110-240 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

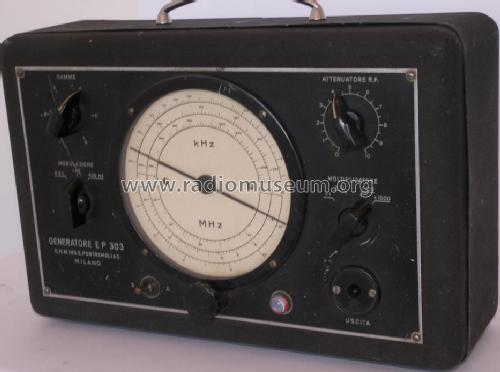

• Model: Generatore AM modulato EP303 - Unaohm Start, Ohm, E.

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 360 x 250 x 140 mm / 14.2 x 9.8 x 5.5 inch

• Notes

• Generatore AM modulato con una frequenza che va da 75 kHz a 60 MHz
  suddivisa in 6 gamme con copertura continua.
  Adatto per radio OM, OL, OC.

• Net weight (2.2 lb = 1 kg)
• 5.9 kg / 12 lb 15.9 oz (12.996 lb)

• Mentioned in
• -- Original prospect or advert (Notiziario di Radio Industria marzo 1948)

• Author
• Model page created by Luciano Righi. See "Data change" for further contributors.

• Other Models

• Here you find 170 models, 146 with images and 71 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Unaohm Start, Ohm, E. Pontremoli; Milano
