Generatore EP57
Unaohm Start, Ohm, E. Pontremoli; Milano
- Country
- Italy
- Manufacturer / Brand
- Unaohm Start, Ohm, E. Pontremoli; Milano
- Year
- 1956 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 129075

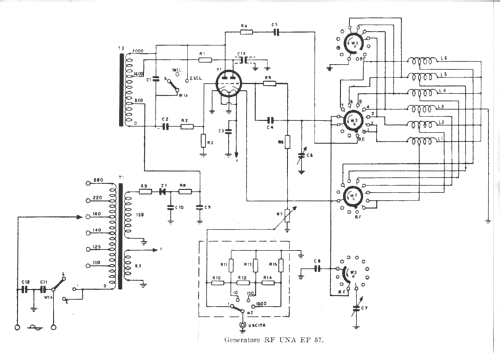

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 1
- Valves / Tubes
- 12AT7
- Wave bands
- Wave Bands given in the notes.
- Power type and voltage
- Alternating Current supply (AC) / 110-280 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Generatore EP57 - Unaohm Start, Ohm, E.
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 190 x 75 mm / 10.6 x 7.5 x 3 inch
- Notes
-

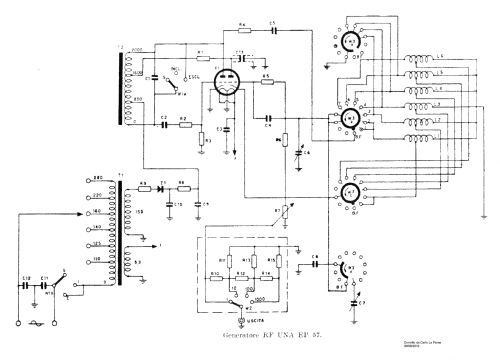

Oscillatore modulato. Tra gli schemi sono presenti delle versioni modificate a correzione di errori dello schema originale (anch'esso presente).
Signal generator.
- Mentioned in
- -- Collector info (Sammler)
Unaohm EP57 - Manuale | 1585 KB |
- Documents regarding this model
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
- Other Models
-
Here you find 171 models, 147 with images and 72 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Unaohm Start, Ohm, E. Pontremoli; Milano
Collections
The model Generatore is part of the collections of the following members.
Forum contributions about this model: Unaohm Start, Ohm, E: Generatore EP57
Threads: 1 | Posts: 1
chi avesse bisogno del manuale originale in pdf può richiedermelo.
If you need the .pdf manual just e-mail me.
Giuseppe Feniello, 28.Jun.18
