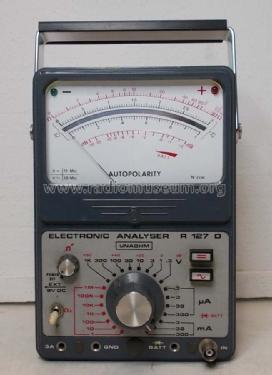

Multimetro R 127
Unaohm Start, Ohm, E. Pontremoli; Milano
- Country
- Italy
- Manufacturer / Brand
- Unaohm Start, Ohm, E. Pontremoli; Milano
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 157769
Click on the schematic thumbnail to request the schematic as a free document.
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 4 x 4,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- from Radiomuseum.org
- Model: Multimetro R 127 - Unaohm Start, Ohm, E.
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 140 x 210 x 100 mm / 5.5 x 8.3 x 3.9 inch
- Notes
- Tensioni continue ed alternate: da 30 mV a 1000 V in otto portate: 0,3 - 1 - 3 - 10 - 30 - 100 - 300 - 1000 V fonda scala
Correnti continue e alternate: da 30 mA a 3 A in otto portate: 0,3 - 3 - 30 - 300 µA - 3 - 30 - 300 mA e 3 A fondo scala
Ohmmetro: da 0,2 a 1000 MOhm in sette portate 10 - 100 - 1000 Ohm 10 - 100 KOhm 1 - 10 MOhm centro scala
- Literature/Schematics (1)
- Selezione Radio-TV Marzo 1972
- Author
- Model page created by Eduard Abfalterer. See "Data change" for further contributors.
