• Year
  • 1973 ??
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 203351

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 1
  • Number of Transistors
  • 28
  • Semiconductors
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org

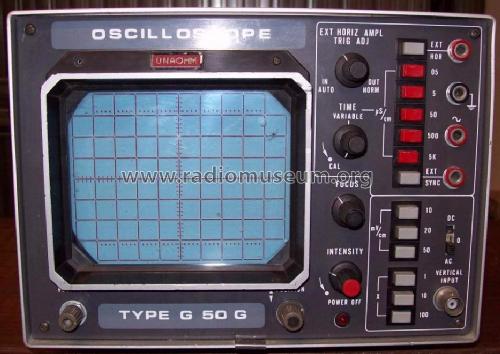

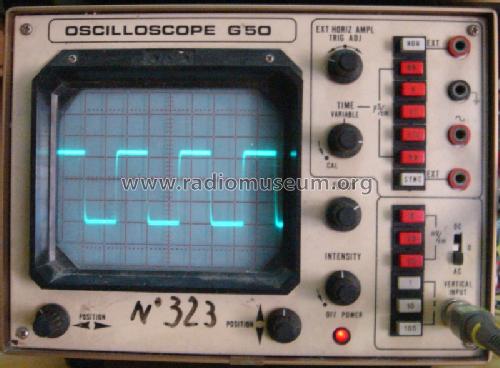

  • Model: Oscilloscope G50 - Unaohm Start, Ohm, E.
  • Shape
  • Tablemodel, with any shape - general.
  • Notes

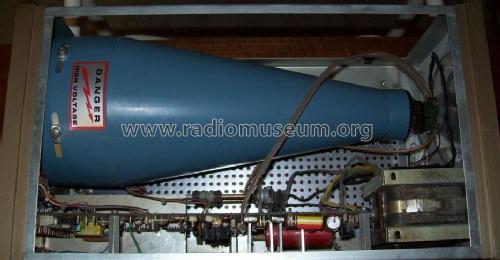

  • 5" CRT Model Nec C529 P31B Bluish Phosphors, 10 MHz Bandwidth, 1 Channel.
  • Author
  • Model page created by Giuseppe Feniello. See "Data change" for further contributors.
