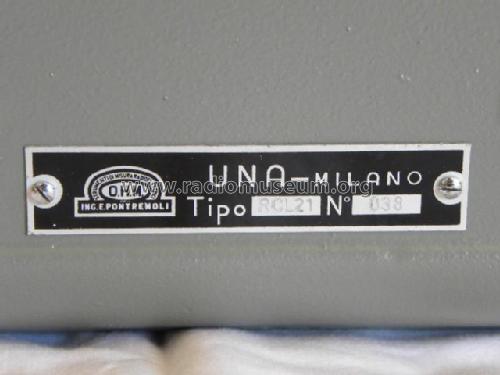

Ponte Universale RCL21
Unaohm Start, Ohm, E. Pontremoli; Milano
- Country
- Italy
- Manufacturer / Brand
- Unaohm Start, Ohm, E. Pontremoli; Milano
- Year
- 1955 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 278158
- Number of Tubes
- 5
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 110-280 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Ponte Universale RCL21 - Unaohm Start, Ohm, E.
- Shape
- Tablemodel, high profile (upright - NOT Cathedral nor decorative).
- Dimensions (WHD)
- 300 x 400 x 170 mm / 11.8 x 15.7 x 6.7 inch
- Notes
-
Campi di misura R da 0,1 a 10 MOhm, C da 10 pf a 100uF, L da 10 uH a 1000H.
Precisione R +/- 1,5%, C +/- 2%, L +/- 3%
Angolo di perdita condensatori da0,01 a 1
Fattore di merito induttanze da 0,05 a 1000
- Net weight (2.2 lb = 1 kg)
- 7.5 kg / 16 lb 8.3 oz (16.52 lb)
- Mentioned in
- - - Manufacturers Literature
- Author
- Model page created by Carlo La Perna. See "Data change" for further contributors.
