Tester/Provavalvole GB12

Unaohm Start, Ohm, E. Pontremoli; Milano

  • Year
  • 1957
  • Category
  • Service- or Lab Equipment
  • Radiomuseum.org ID
  • 161243

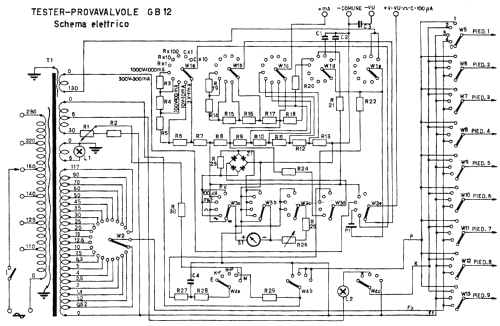

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 140; 160; 220; 280 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Tester/Provavalvole GB12 - Unaohm Start, Ohm, E.
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 330 x 240 x 160 mm / 13 x 9.4 x 6.3 inch
  • Notes
  • Multimeter/Tubetester (cathode emission), 12 american & european sockets, multimeter 10.000ohms/volt.AC/DC Volts 3/10/100/300/1000; 0.1/1/10/100/300/1000 mA; 0-5 Mohms, 3 scales; 1000 pF-5µF, 2 scales; -10 to +10 dB.
  • Literature/Schematics (1)
  • - - Manufacturers Literature
