• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1970 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 323799

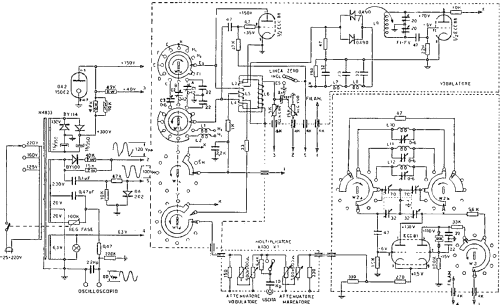

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 2

• Valves / Tubes
• ECC88 ECC81 0A2 or 150C2

• Number of Transistors

• Semiconductors
• OA90 OA90 OA202 BY100 BY114 BY114

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 125; 160; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Vobulatore EP-654 - Unaohm Start, Ohm, E.

• Shape
• Tablemodel, with any shape - general.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Toni Gutiérrez García. See "Data change" for further contributors.
