• Country
• Italy

• Manufacturer / Brand
• Unaohm Start, Ohm, E. Pontremoli; Milano

• Year
• 1963 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 161116

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• EAA91 EAA91 ECC82

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / (110; 220) + 1,5 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

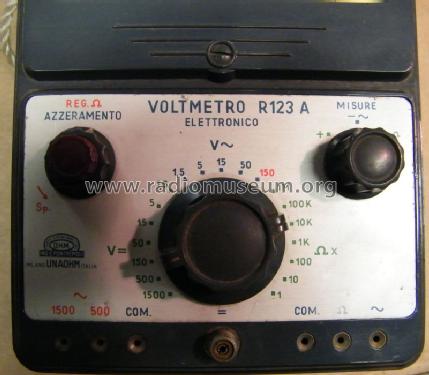

• Model: Voltmetro Elettronico R123 - Unaohm Start, Ohm, E.

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 140 x 210 x 70 mm / 5.5 x 8.3 x 2.8 inch

• Notes
• Tensioni continue
  Portate: 1,5-5-50-150-500-1500V fondo scala
  Tensione alternate
  Portate in valore efficace:1,5-5-15-50-150-500-1500V per forma d'onda sinusoidale
  Portate in valore di picco-picco: 4-14-40-140-400-1400-4000V fondo scala per tensioni di qualunque forma


• Net weight (2.2 lb = 1 kg)
• 2 kg / 4 lb 6.5 oz (4.405 lb)

• Literature/Schematics (1)
• Selezione Radio-TV, Aprile 1963

• Author
• Model page created by Eduard Abfalterer. See "Data change" for further contributors.
