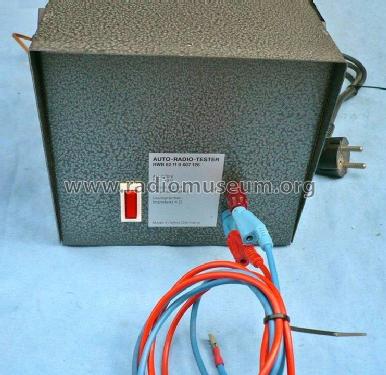

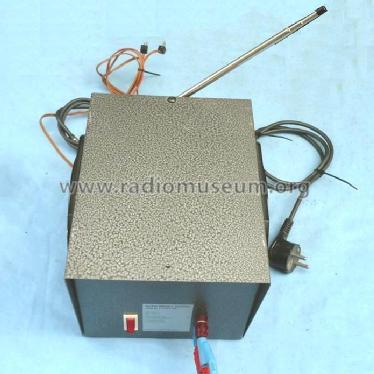

Auto-Radio-Tester HWB 82 11 9 407 126
UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»
- Country
- Germany
- Manufacturer / Brand
- UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»
- Year
- 1982 ?
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 320950
-
- alternative name: Unknown, Custom Built
- Number of Transistors
- 2
- Semiconductors
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- 2 Loudspeakers
- Material
- Metal case
- from Radiomuseum.org
- Model: Auto-Radio-Tester HWB 82 11 9 407 126 - UNBEKANNTE FIRMA D / A / CH -
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 160 x 170 x 220 mm / 6.3 x 6.7 x 8.7 inch
- Notes
-
Speaker: 2 × 4Ω.
Uout: DC 12 V / 4 A1 IC.
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
