PSL.2
Excelsiorwerk; Leipzig
- Country
- Germany
- Manufacturer / Brand
- Excelsiorwerk; Leipzig
- Year
- 1942
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 246079
-
- Brand: Kiesewetter
- Wave bands
- - without
- Power type and voltage
- Dry Batteries / 4,5 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite case
- from Radiomuseum.org
- Model: PSL.2 - Excelsiorwerk; Leipzig
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 88 x 130 x 60 mm / 3.5 x 5.1 x 2.4 inch
- Notes
-

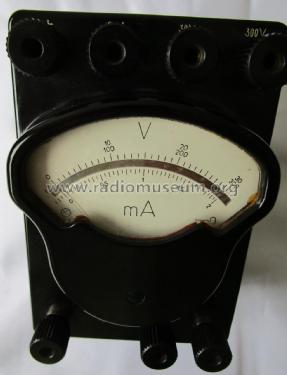

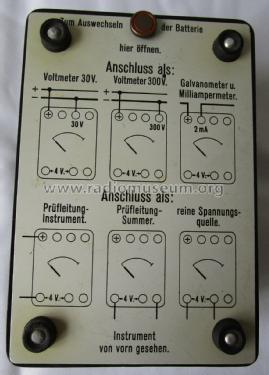

Voltmeter für Spannungen von 0...30 V und 0...300 V, Galvanometer und Milliamperemeter für Stöme von 0...2 mA.

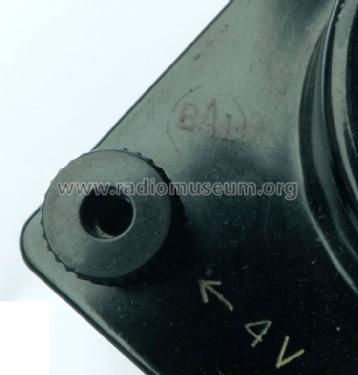

Durchgangsprüferfunktion mit Instrument bzw. Summer, auch Verwendung als reine Spannungsquelle 4 V.
Baumuster PSL.2, Anf.Z.FI 26763.
- Net weight (2.2 lb = 1 kg)
- 0.560 kg / 1 lb 3.7 oz (1.233 lb)
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
