• Country
• Germany

• Manufacturer / Brand
• UNBEKANNTE FIRMA D / A / CH - Siehe Anleitung unter der «Firma»

• Year
• 1979

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 146121

• • alternative name: Unknown, Custom Built

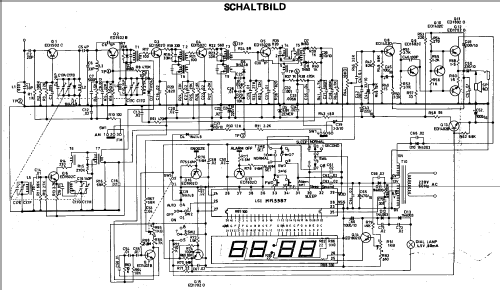

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Radio with other functions

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.6 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Rocky Sensor Automatic 80 09267 - UNBEKANNTE FIRMA D / A / CH -

• Shape
• Tablemodel with Clock ((Alarm-) Clock Radio).

• Notes
• Uhren-Radio

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by a member from D. See "Data change" for further contributors.
