• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1960/1961

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 114741

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 ECH81 EF89 EABC80 EL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120-220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 2.5 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

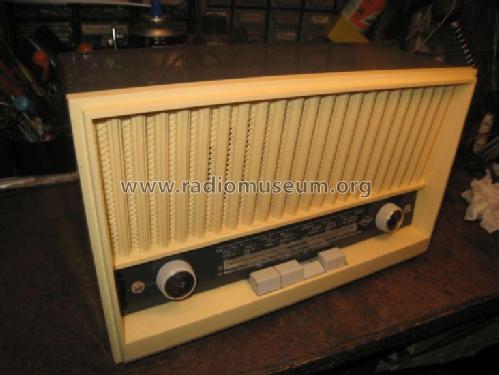

• Model: Majorca 63/19 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 285 x 180 x 160 mm / 11.2 x 7.1 x 6.3 inch

• Notes

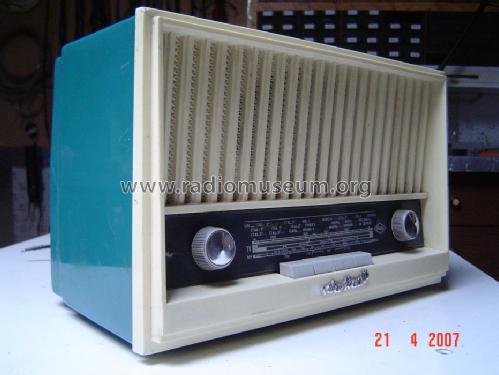

• Apparecchio in plastica colore blu mare e frontale bianco.

• Net weight (2.2 lb = 1 kg)
• 3 kg / 6 lb 9.7 oz (6.608 lb)

• Price in first year of sale
• 21,500.00 ITL

• Source of data
• Guida Pratica Antique Radio III (2000)

• Mentioned in
• annuario ANIE 1960
