- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1953
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 155034

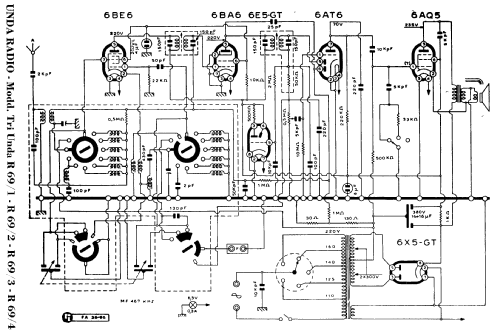

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast plus more than 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.5 W (unknown quality)
- Material
- Wooden case
- from Radiomuseum.org
- Model: 69/1 - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel, low profile (big size).
- Dimensions (WHD)
- 450 x 0 x 0 mm / 17.7 x 0 x 0 inch
- Notes
-
Gamme d'onda: medie e 8 corte.
- 1 = OM
- 2 = 187.5 - 82.8 m (120 m, 160 m band)
- 3 = 85.7 - 75 m (75 m band)
- 4 = 52.8 - 45.8 m (49 m band)
- 5 = 44.1 - 39.3 m (41 m band)
- 6 = 32.8 - 29.1 m (31 m band)
- 7 = 26.8 - 24 m (25 m band)
- 8 = 20.8 - 18.8 m (19 m band)
- 9 = 18.5 - 16.5 m (16 m band)
- Source of data
- Guida Pratica Antique Radio II (2000)
