• Country
• Italy

• Manufacturer / Brand
• Unda Radio; Como, Dobbiaco

• Year
• 1958–1960

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 118621

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 UCH81 UF89 UABC80 EL84 UY85

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 120; 140; 160; 180; 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

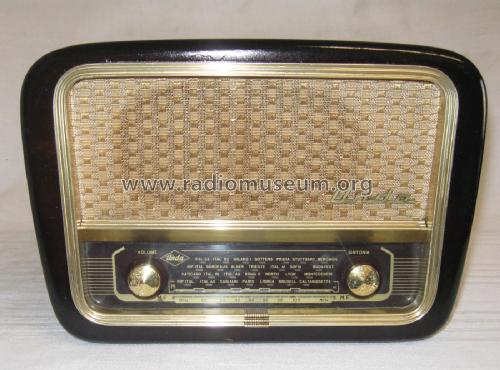

• Model: R62/3 - Unda Radio; Como, Dobbiaco

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 256 x 190 x 150 mm / 10.1 x 7.5 x 5.9 inch

• Notes
• Serie ANIE MF. Altoparlante ellittico Ø 152x97 mm.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Price in first year of sale
• 29,750.00 LIT

• Source of data
• Guida Pratica Antique Radio (1) 1999

• Mentioned in
• -- Original prospect or advert

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
