R63/11
Unda Radio; Como, Dobbiaco
- Country
- Italy
- Manufacturer / Brand
- Unda Radio; Como, Dobbiaco
- Year
- 1950 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 115293
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 467 kHz
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- Alternating Current supply (AC) / 110; 125; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Wooden case
- from Radiomuseum.org

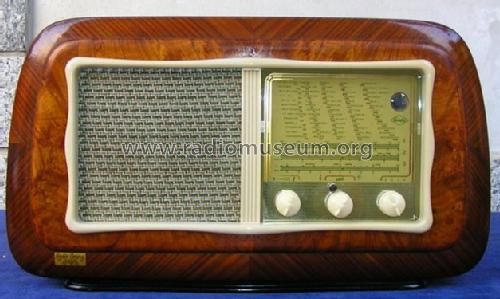

- Model: R63/11 - Unda Radio; Como, Dobbiaco
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 520 x 290 x 220 mm / 20.5 x 11.4 x 8.7 inch
- Notes
-
Onde Medie, Corte e Cortissime.
Ingresso Fono. Controllo di tono a tre posizioni.
- Mentioned in
- -- Collector info (Sammler)
- Literature/Schematics (1)
- -- Schematic (Il Radio Libro D.E. Ravalico 13a edizione Hoepli editore 1952.)
- Author
- Model page created by Alessandro De Poi. See "Data change" for further contributors.
